  • View 1 of hood DG3 ISLA 985 Stainless steel by Teka

_Total

>

DG3 ISLA 985

Decorative glass wing hood with EcoPower motor, 90cm

  • Up to 796m³/h extraction capacity
  • 3 air extraction levels + intensive
  • 4 LED lights
  • EcoPower engine
  • Extraction timer
REF. 40485150
EAN. 8421152145814
Select a colour: Stainless steel
Stainless steel

Your hood always clean

Decorative filters with 12 layers ready to absorb up to 98% of grease and helping you to keep your hood clean. And you can wash the filters in the dishwasher.
Your hood always clean

Maximum efficiency with lower consumption

Our hoods have 4A Energy Class so will reduce your next electric bill significantly.
Maximum efficiency with lower consumption

Extraction from any angle

Teka hoods have optimal absorption capacity by extraction to enjoy your kitchen free of smoke and odors.
Extraction from any angle

Ambient lighting: adjust the ligh temperature and intensity to your kitchen

LED lighting bars is our best tool to provide light to a bigger area over the cooking zone, and being more efficient and environmentally friendly at the same time.
Ambient lighting: adjust the ligh temperature and intensity to your kitchen

Technical details

  • Decorative glass wing island hood
  • Electronic control with display
  • 3 speeds + 1 intensive
  • Free Outlet exhaust capacity (m3/h): 920
  • Intensive speed exhaust capacity (m3/h): 796
  • Max speed exhaust capacity (m3/h): 605
  • Min speed exhaust capacity (m3/h): 311
  • Intensive speed sound level (dBA): 71
  • Max speed sound level (dBA): 66
  • Min speed sound level (dBA): 52
  • 4 LED lamps
  • 2 Stainless Steel filters
  • Stop delay timer
  • Filter saturation indicator
  • Operating pilot light
  • Anti-return valve included
  • Outlet reduction included
  • Optional recirculation kit with tube cover installation: SET 1/T1
  • Optional Charcoal Filter: D4C
Interior measurements
  • Inner Height (mm): 1000

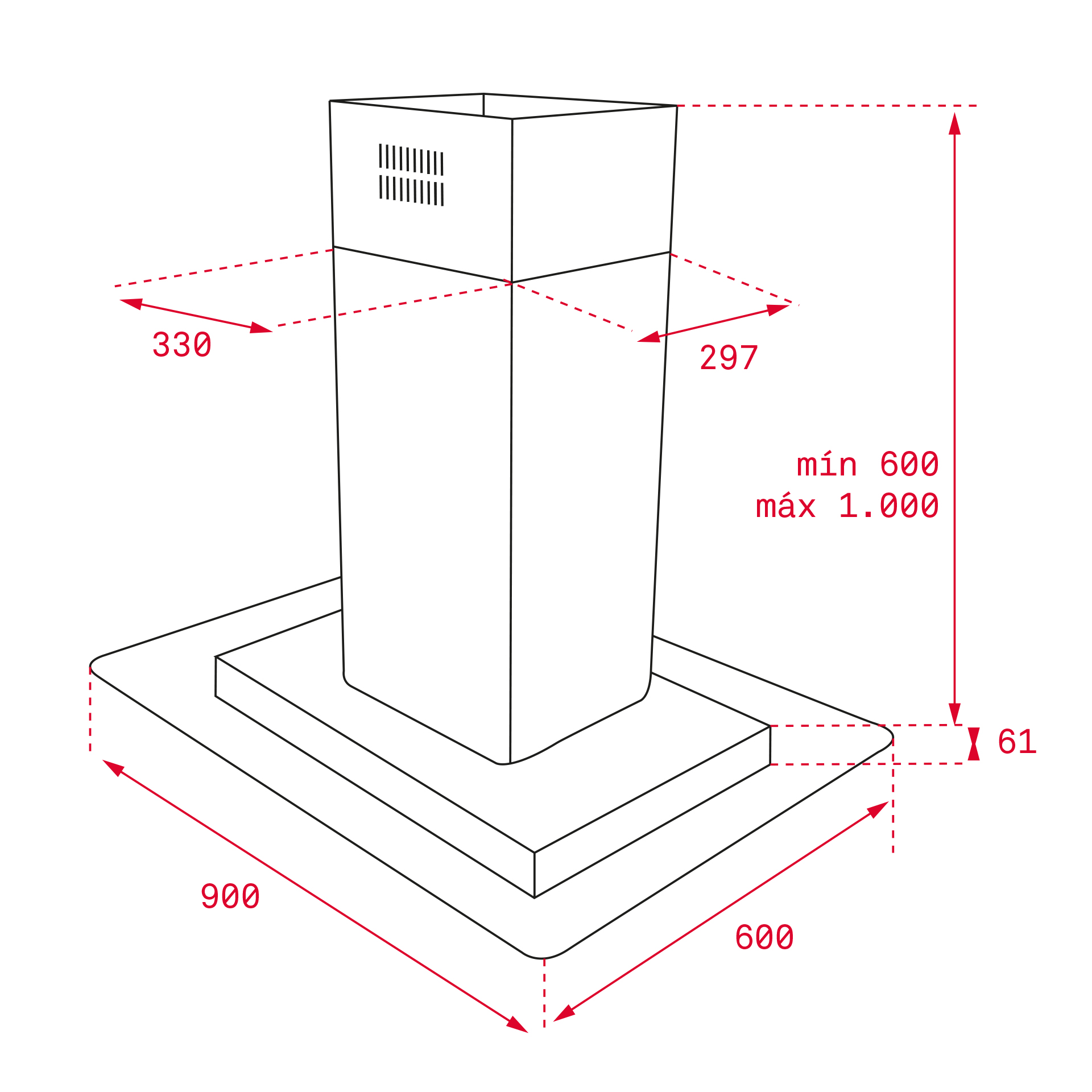

General measures
  • Product height (mm): 871 - 1171
  • Product width (mm): 900
  • Product depth (mm): 600
  • Net weight (Kg): 36,01
Features
  • Certificates: CE; CB; Rohs
  • Ø Outlet (mm): 150
  • Type of inner light: LED
  • Inside light Consumption (W): 3
  • Plug type: European plug
  • Power rate (V): 220-240
  • Frequency (Hz): 50
  • Total hood power (W): 292
  • Number of motors: 1
  • Motor power (W): 280
  • Air flow (Qmin) m3/h: 311
  • Air flow (Qmax): 605
  • Air flow (Qboost): 796
Accessories
  • Anti Return valve: Yes
  • Outlet reduction: Yes
  • Optional Charcoal Filter: D4C
  • Conventional recirculation kit (opt) - w/tube cover: SET 1/T1
Models
  • Number of filters: 2
  • Filter description: Stainless Steel filters
  • Control panel: Backlit electronic control with white display
  • Stop delay timer: Yes
  • Filter saturation indicator: Yes
  • Number of speeds: 3+1

Accessories

Compatible accessories, not included in the product.
