>TS1 135

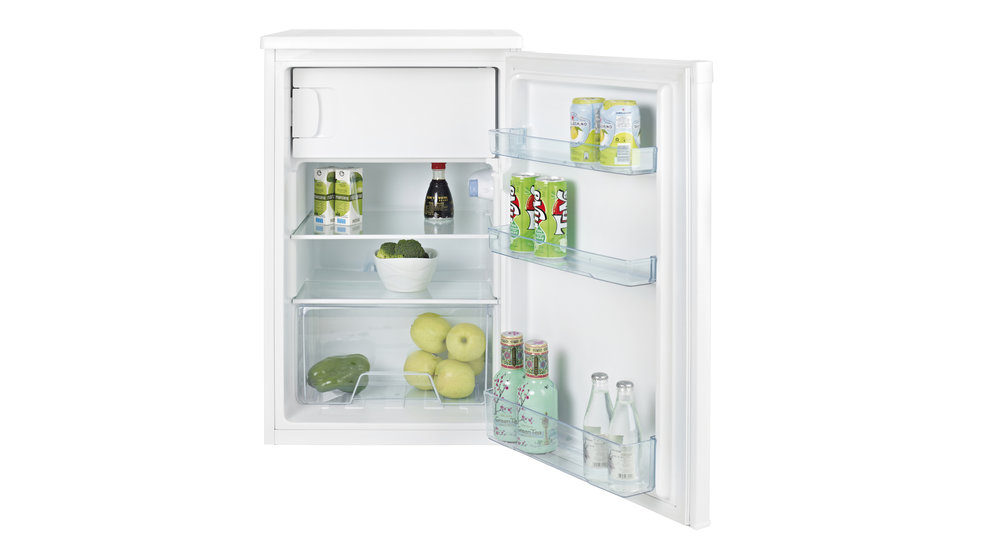

Free Standing Tabletop Larder Defrost in 85cm with 1 door and mechanical control
REF. 113320000
EAN. 8434778000030
Select a colour: White
- Free standing tabletop refrigerator
- Mechanical control panel
- 4* freezer
- Manual defrost
- 2 glass shelves
- Reversible door
- 1 FreshBox drawer
- Free Standing table top refrigerator
- Manual defrost
- Manual adjustable thermostat
- Safety glass shelves
- Mini freezer included
- Front adjustable feet
- Reversible doors
- Climate class: N/ST
- Total capacity (gross): 102 litres
- Ice cube tray included
General measures
- Product height (mm): 845
- Product width (mm): 501
- Product depth (mm): 540
- Net weight (Kg): 25,4
Fitting measures
- Built-in height (mm): 845
Product sheet
- Cooling system: Defrost
- Total gross capacity (litres): 102
- Refrigerator compartment capacity (litres): 84
- Freezer compartment capacity (litres): 14
- Freezer classification: 4
- Freezing capacity: 2,0
- Annual Consumption (kWh/year): 172
- Temperature Rise Time (h): 15
- Climate class: N/ST
- Noise level (dB): 39
- Certificates: CE, LCIE
Power supply
- Frequency (Hz): 50
- Power rate (V): 220-240
- Power rate (W): 70
- Energy consumption (kw/day): 0,36
Particular characterisitics
- Type of installation: Free standing
- Automatic defrosting in the refrigeration compartment: Yes
- Antibacterial treatment: NO
- Inner light: Yes
- Type of inner light: STANDARD BULB
- Reversible doors: Yes
- Integrated handle: Yes
Equipment
- Multipurpose compartment: NO
- Bottle rack type: NO
- Adjustable Feet Back: Yes
- Adjustable feet front: Yes
- Vegetable drawers: 1
- Temperature and humidity regulation in drawers: FRESH BOX
Product information sheet (UE) 2019/2016
- Supplier name or trademark: TEKA
- Supplier’s address: C/Cajo, 17, 39011, Santander , Spain
- Model identifier: TS1 135 EU
Type of refrigerating appliance
- Low-noise appliance: 0
- Design type: Free standing
- Wine storage appliance: 0
- Other refrigerating appliance: 1
Overall dimensions (mm)
- Height: 845
- Width: 501
- Depth: 540
- Total volume (dm3 or l): 98
- Energy efficiency class: F
- Airborne acoustical noise emission class: C
- Annual energy consumption (kWh/a): 172
- Climate class: N/ST
- Minimum ambient temperature (°C), for which the refrigerating appliance is suitable: 16
- Maximum ambient temperature (°C), for which the refrigerating appliance is suitable: 38
- Winter setting YES/NO: 0
- Compartment 1: FRESH FOOD
- Compartment 1 - Compartment Volume (l): 84
- Compartment 1 - Recommended temperature setting for optimised food storage (°C): 4
- Compartment 1 - Freezing capacity (kg/24h): NA
- Compartment 1 - Defrosting type: A
- Compartment 1 - Target temperature (°C): NA
- Compartment 1 - Thermodynamic parameter (rc): NA
- Compartment 1 - Nc: NA
- Compartment 1 - Mc: NA
- Compartment 1 - Defrost factor (Ac): NA
- Compartment 1 - Built-in factor (Bc): NA
- Compartment 2: 4 STARS
- Compartment 2 - Compartment Volume (l): 14
- Compartment 2 - Recommended temperature setting for optimised food storage (°C): -18
- Compartment 2 - Freezing capacity (kg/24h): 2
- Compartment 2 - Defrosting type: M
- Compartment 2 - Target temperature (°C): NA
- Compartment 2 - Thermodynamic parameter (rc): NA
- Compartment 2 - Nc: NA
- Compartment 2 - Mc: NA
- Compartment 2 - Defrost factor (Ac): NA
- Compartment 2 - Built-in factor (Bc): NA
- Compartment 3: NA
- Compartment 3 - Compartment Volume (l): NA
- Compartment 3 - Recommended temperature setting for optimised food storage (°C): NA
- Compartment 3 - Freezing capacity (kg/24h): NA
- Compartment 3 - Defrosting type: NA
- Compartment 3 - Target temperature (°C): NA
- Compartment 3 - Thermodynamic parameter (rc): NA
- Compartment 3 - Nc: NA
- Compartment 3 - Mc: NA
- Compartment 3 - Defrost factor (Ac): NA
- Compartment 3 - Built-in factor (Bc): NA
- Compartment 4: NA
- Compartment 4 - Compartment Volume (l): NA
- Compartment 4 - Recommended temperature setting for optimised food storage (°C): NA
- Compartment 4 - Freezing capacity (kg/24h): NA
- Compartment 4 - Defrosting type: NA
- Compartment 4 - Target temperature (°C): NA
- Compartment 4 - Thermodynamic parameter (rc): NA
- Compartment 4 - Nc: NA
- Compartment 4 - Mc: NA
- Compartment 4 - Defrost factor (Ac): NA
- Compartment 4 - Built-in factor (Bc): NA
- Compartment 5 - Type: NA
- Compartment 5 - Compartment Volume (l): NA
- Compartment 5 - Recommended temperature setting for optimised food storage (°C): NA
- Compartment 5 - Freezing capacity (kg/24h): NA
- Compartment 5 - Defrosting type: NA
- Compartment 5 - Target temperature (°C): NA
- Compartment 5 - Thermodynamic parameter (rc): NA
- Compartment 5 - Nc: NA
- Compartment 5 - Mc: NA
- Compartment 5 - Defrost factor (Ac): NA
- Compartment 5 - Built-in factor (Bc): NA
Light source parameters
- Light source - Type of light source: LED
- Light source - Energy efficiency class: NA
- Minimum duration of the guarantee offered by the manufacturer (b): 24
Light source parameters
- Light source - Type of light source: LED
- Light source - Energy efficiency class: NA
- Minimum duration of the guarantee offered by the manufacturer (Years) (b): 24
Additional information:
- Weblink to the manufacturer’s website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 (1) (b) is found: www.teka.com
- (a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015 (2).
- (b) changes to these items shall not be considered relevant for the purposes of point 4 of Article 4 of Regulation (EU) 2017/1369.
- (c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
- (1) Commission Regulation (EU) 2019/2019 of 1 October 2019 laying down ecodesign requirements for refrigerating appliances pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 643/2009 (see page 187 of this Official Journal).(2)
- (2) Commission Delegated Regulation (EU) 2019/2015 of 11 March 2019 supplementing Regulation (EU) 2017/1369 of the European Parliament and of the Council with regard to energy labelling of light sources and repealing Commission Delegated Regulation (EU) No 874/2012 (see page 68 of this Official Journal).
