Wall-mounted pyramid-shaped extractor hood DBB 70 HP
- Up to 780 m³/h extraction capacity
- 3 extraction speeds
- Standard lamps
REF. 40460471
EAN. 8421152076156
Pilih satu warna: Stainless Steel
Create harmony in your kitchen
Berbagai bentuk dan ukuran untuk menemukan cooker hood yang sempurna yang Anda cari, dengan desain inovatif dalam stainless steel atau kaca putih / hitam.
Your hood always clean
Decorative filters with 12 layers ready to absorb up to 98% of grease and helping you to keep your hood clean. And you can wash the filters in the dishwasher.
Extraction from any angle
Teka hoods have optimal absorption capacity by extraction to enjoy your kitchen free of smoke and odors.
More powerful and environmentally responsible LED lighting
LED lighting bars is our best tool to provide light to a bigger area over the cooking zone, and being more efficient and environmentally friendly at the same time.
Discover the best recipes for every day
Do you need inspiration when cooking? Get lots of ideas with our recipe collections. Discover them all and dare to try them! +See recipes
Technical details
- Pyramidal decorative hood
- Push buttons control panel
- Operating Pilot Light
- Conventional aspiration
- 3 speeds
- Exhaust capacities:
- Free Outlet (m³/h): 850
- Max. (m³/h): 780
- Min. (m³/h): 240
- Noise (LwA) Max Speed 56 dB
- Noise (LwA) Min Speed 48 dB
- Incandescent Lamps
- 2 aluminum filters

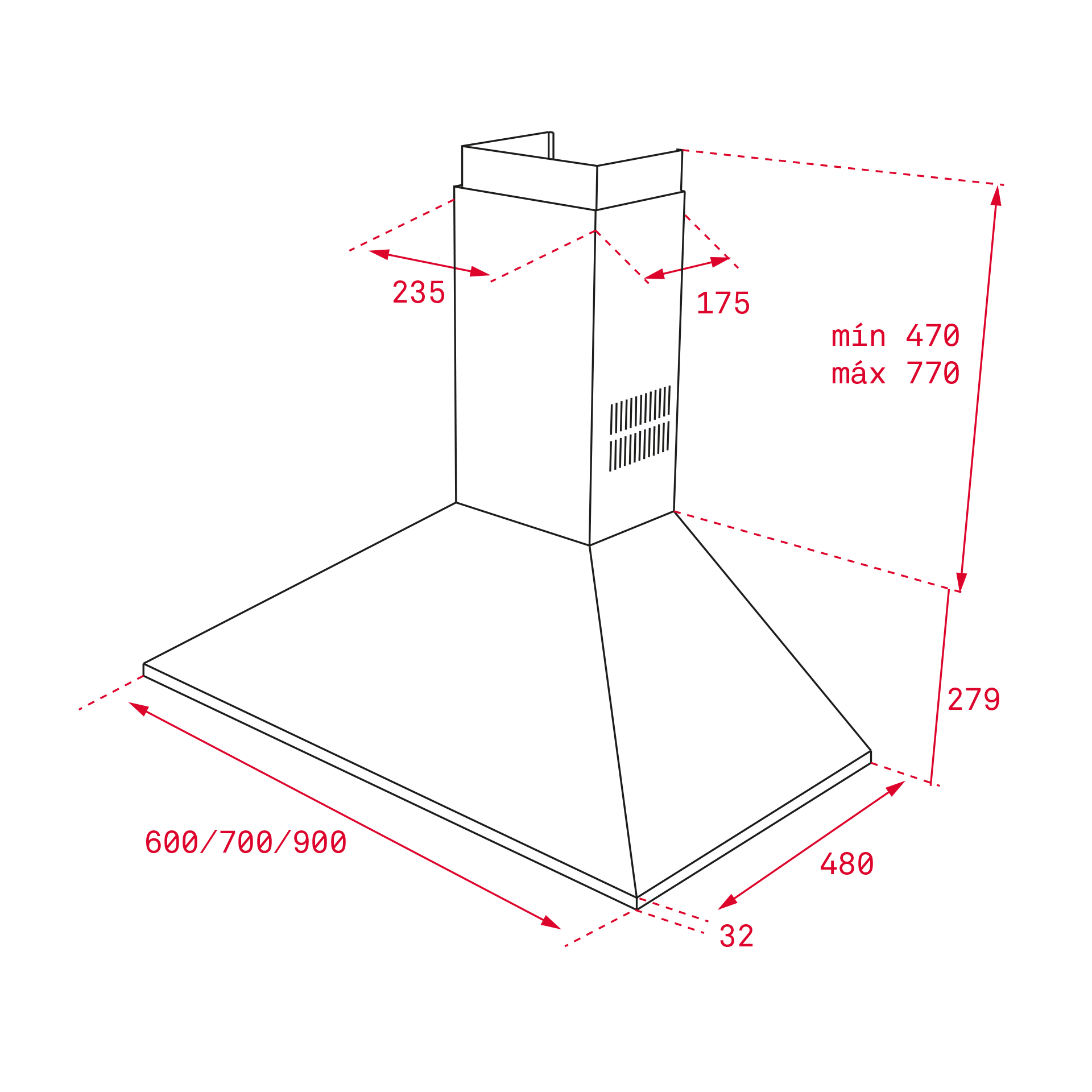

Ukuran
- Product height (mm): 749-1049
- Product width (mm): 700
- Product depth (mm): 480
- Net weight (Kg): 8,1
Particular characterisitics
- Certificates: CE; CB
- Ø Outlet (mm): 150
- Type of inner light: LED
- Inside light Consumption (W): 5
- Plug type: European plug
- Power rate (V): 220-240
- Frequency (Hz): 50/60
- Total hood power (W): 310
- Number of motors: 1
- Motor power (W): 230
- Air flow (Qmin) m3/h: 295
- Air flow (Qmax): 650
- Air flow (Qboost): n/a
Aksesoris
- Anti Return valve: YA
- Outlet reduction: YA
- Optional Charcoal Filter: C1RTK
- Regenerative charcoal filter: R1RTK
- Conventional recirculation kit (opt) - w/tube cover: CFH 15200 L2C
- Regenerative recirculation kit (opt) - w/tube cover: RFH 15200 L2C
Model
- Number of filters: 2
- Filter description: Aluminum
- Control panel: Rectangular Push Buttons
- Number of speeds: 3
