_Maestro
>DPL 1185
110cm Island Hood with Contour Rim extraction, Touch control and ECOPOWER motor
REF. 40483172
EAN. 8421152145777
Select a colour: Stainless Steel/Black Glass
- Up to 771m³/h extraction capacity 782 m³/h
- 3 air extraction levels + intensive
- LED lights
- Extraction timer
- EcoPower
- Island hood
- Rim extraction
- EcoPower motor
- Energy Efficiency class: A
- Rim extraction
- Touch control White display
- Operating pilot light
- 3 speeds + 1 intensive
- Exhaust capacities:
- Free Outlet, m³/h: 920
- Qboost, m3/h: 651
- Max., m3/h: 629
- Min., m³/h: 331
- Noise (LwA) Boost Speed, dB: 65,2
- Noise (LwA) Max Speed, dB: 66
- Noise (LwA) Min Speed, dB: 54
- LED illumination
- Reinforced black glass
- 2 hidden aluminum filters
- Stop delay timer
- Filter saturacion indicator
Interior measurements
- Inner Height (mm): 1000

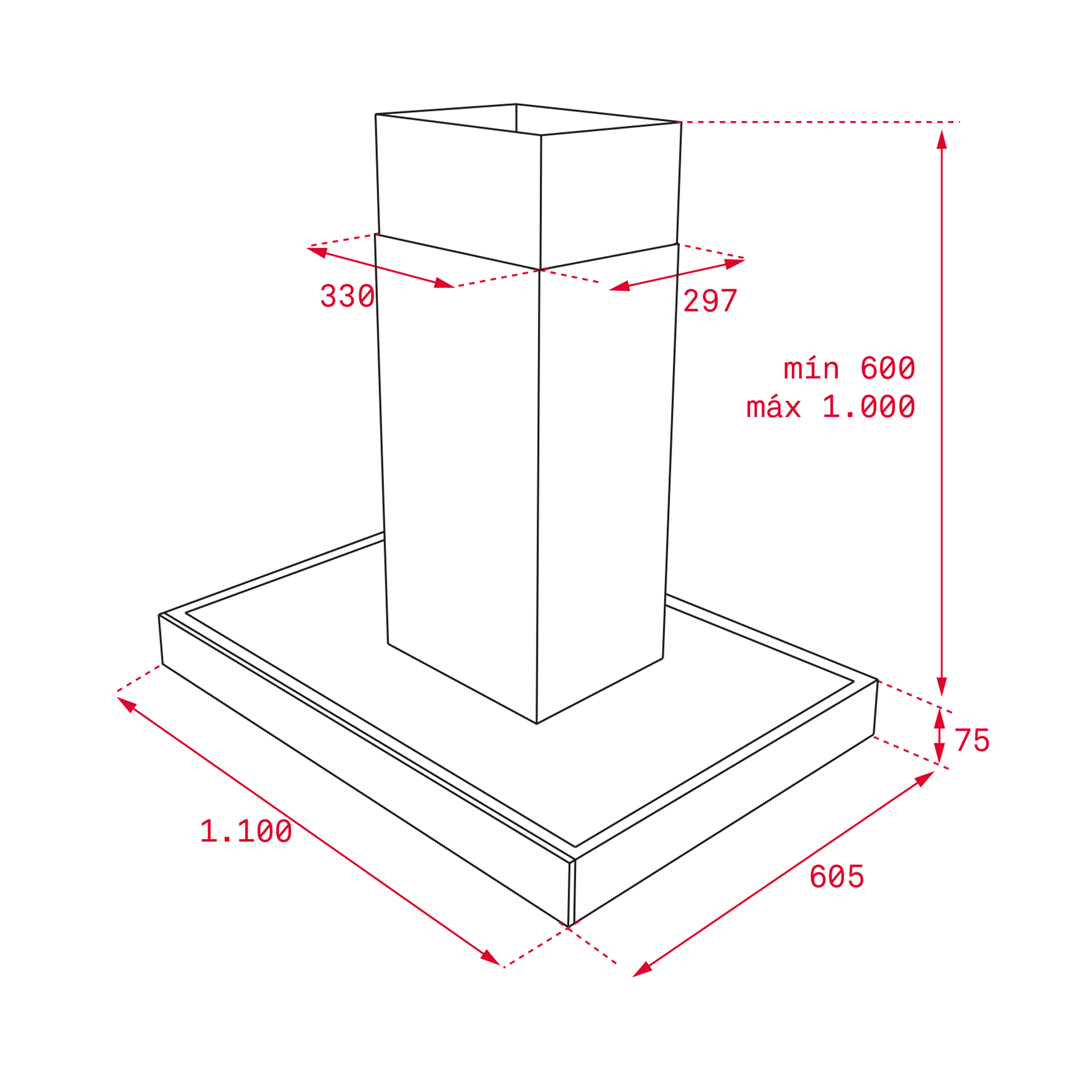

General measures
- Product height (mm): 817-1117
- Product width (mm): 1100
- Product depth (mm): 605
- Net weight (Kg): 17,4
Particular characterisitics
- Type of hood: Horizontal
- Style: Decoratives
- Ø Outlet (mm): 150
- Type of inner light: LED
- Inside light Consumption (W): 3
- Plug type: European plug
- Power rate (V): 220240
- Frequency (Hz): 50
- Total hood power (W): 292
- Number of motors: 1
- Motor power (W): 280
- Exhaust Capacity - Free Outlet (m3/h): 920
EU Regulation No. 65/2014 &66/2104
- Annual energy consumption AEC kWh/annum (kWh): 49,3
- Energy Efficiency Class: A
- Fluid Dynamic Efficiency (FDEhood): 32,1
- Fluid Dynamic Efficiency class: A
- Light Efficiency (Lehood) lux/Watt: 58,3
- Lighting Efficiency class: A
- Grease Filtering Efficiency class: C
- Air flow (Qmin) m3/h: 331
- Air flow (Qmax): 629
- Air flow (Qboost): 782
- Noise (LwA) Min Speed (dB): 54
- Noise (LwA) Max Speed (dB): 66
- Noise (LwA) boost speed (dB): 69
- Off mode Power (Po) W: 0,00
- Standby Power (Ps) W: 0,74
- Energy Efficiency Index (EEI): 50,1
- Time increase factor: 0,8
- Electric power input at best efficiency point (Wbep) W: 139,0
- Nominal power of the lighting system (WL) W: 12
- Average illumination of the lighting system on the cooking surface (Emiddle) Lux: 700
Accessories
- Anti Return valve: Yes
- Outlet reduction: Yes
- Optional Charcoal Filter: D4C
- Charcoal filter description: CHARCOAL FILTER D4C
- Conventional recirculation kit (with tube cover): 40490149
Models
- Number of filters: 3
- Filter description: inox panel; aluminum filters below
- Control panel: Touch control with white display
- Stop delay timer: Yes
- Filter saturation indicator: Yes
- Number of speeds: 3+1
Product Information Sheet - Delegated Regulation (EU) 65/2014
- Supplier name or trademark: TEKA
- Model identifier: DPL 1185
- Annual Energy Consumption: 49,3
- Energy Efficiency Class: A
- Fluid Dynamic Efficiency: 32,1
- Fluid Dynamic Efficiency class: A
- Lighting Efficiency: 58,3
- Lighting Efficiency class: A
- Grease Filtering Efficiency class: C
- Air flow (min speed normal use): 331
- Air flow (max speed normal use): 629
- Air flow (intensive or boost use): 782
- Airborne acoustical A-weighted sound power emissions (min speed normal use): 54
- Airborne acoustical A-weighted sound power emissions (max speed normal use): 66
- Airborne acoustical A-weighted sound power emissions (instensive or boost use): 69
- Power consumption in off mode (W): 0,00
- Power consumption in standby mode (W): 0,74
Compatible accessories, not included in the product.
