_Easy

>

NC 980

Glass wing wall-mounted extractor hood NC 980

REF. 40455332
EAN. 8421152130490
Select a colour: Stainless Steel/Glass Wing
Stainless Steel/Glass Wing
  • Up to 637 m³/h extraction capacity
  • 3 extraction speeds + intensive
  • LED lamps
  • Ultraslim design
  • Ultraslim glass wing decorative hood
  • Eco power
  • Backlit electronic panel with white display
  • Conventional aspiration
  • 3 speeds + 1 intensive
  • Exhaust capacities:
  • Free Outlet (m³/h): 825
  • Max. (m³/h): 637
  • Min. (m³/h): 298
  • Noise (LwA) Max Speed 60 dB
  • Noise (LwA) Min Speed 52 dB
  • LED ilumination
  • 1 stainless steel-aluminium filter
  • Stop delay timer
  • Reinforced glass upper structure

General measures

  • Product height (mm): 674-1004
  • Product width (mm): 900
  • Product depth (mm): 500
  • Net weight (Kg): 15,2

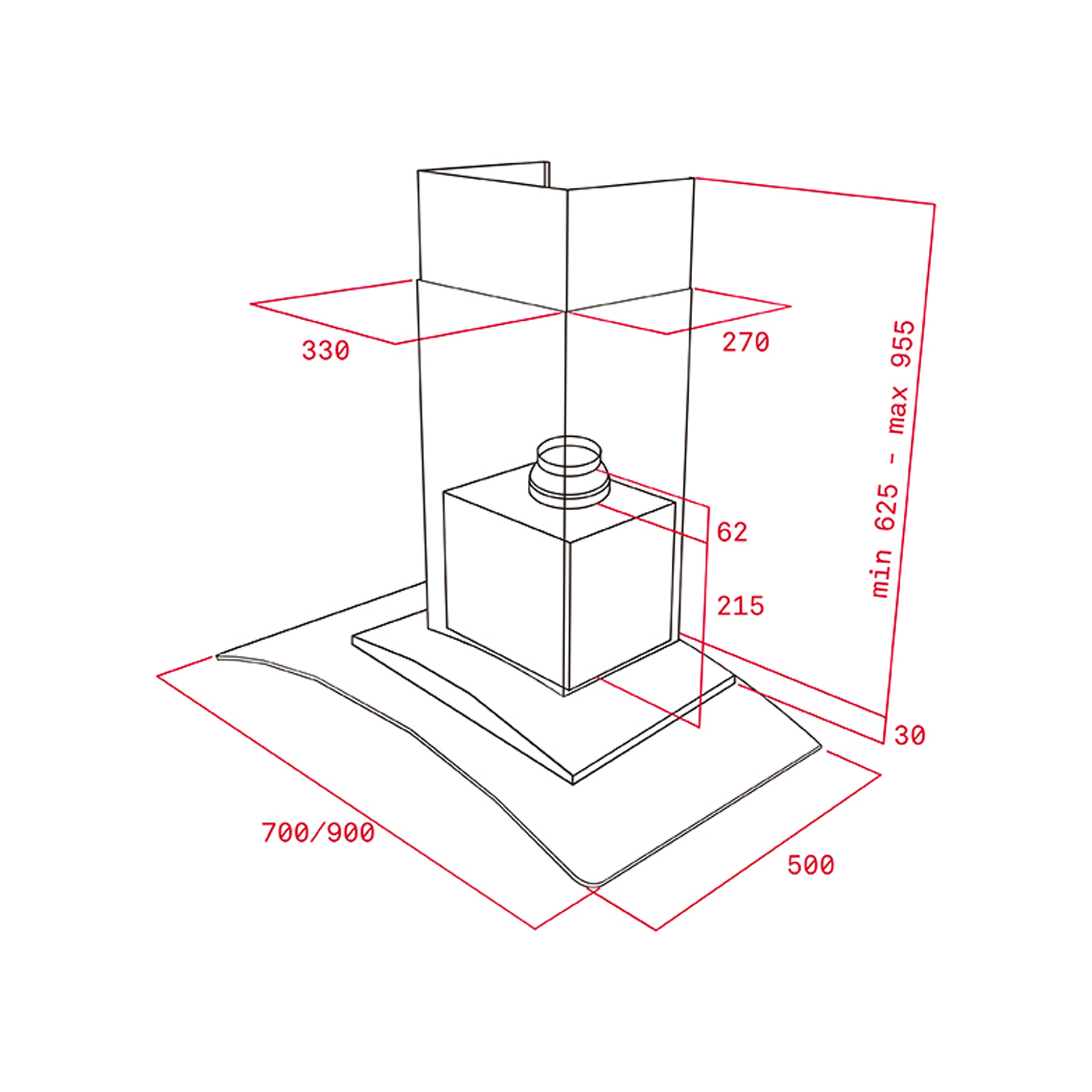

View technical drawing

Particular characterisitics

  • Type of hood: Glass Wing
  • Style: Decoratives
  • Certificates: CE; CB; Rohs
  • Ø Outlet (mm): 150
  • Type of inner light: LED
  • Inside light Consumption (W): 3
  • Plug type: European plug
  • Power rate (V): 220240
  • Frequency (Hz): 50/60
  • Total hood power (W): 236
  • Number of motors: 1
  • Motor power (W): 230
  • Exhaust Capacity - Free Outlet (m3/h): 825

EU Regulation No. 65/2014 &66/2104

  • Annual energy consumption AEC kWh/annum (kWh): 135,8
  • Energy Efficiency Class: D
  • Fluid Dynamic Efficiency (FDEhood): 12,7
  • Fluid Dynamic Efficiency class: E
  • Light Efficiency (Lehood) lux/Watt: 65,2
  • Lighting Efficiency class: A
  • Grease Filtering Efficiency class: C
  • Air flow (Qmin) m3/h: 298
  • Air flow (Qmax): 402
  • Air flow (Qboost): 637
  • Noise (LwA) Min Speed (dB): 52
  • Noise (LwA) Max Speed (dB): 60
  • Noise (LwA) boost speed (dB): 70
  • Off mode Power (Po) W: 0,00
  • Standby Power (Ps) W: 0,56
  • Energy Efficiency Index (EEI): 90,2
  • Time increase factor: 1,5
  • Electric power input at best efficiency point (Wbep) W: 240,0
  • Nominal power of the lighting system (WL) W: 6
  • Average illumination of the lighting system on the cooking surface (Emiddle) Lux: 391

Accessories

  • Anti Return valve: Yes
  • Outlet reduction: Yes
  • Optional Charcoal Filter: D4C
  • Charcoal filter description: CHARCOAL FILTER D4C
  • Conventional recirculation kit (with tube cover): 40490147

Models

  • Number of filters: 1
  • Filter description: Stainless Steel filters
  • Control panel: Backlit electronic control with white display
  • Stop delay timer: Yes
  • Filter saturation indicator: Yes
  • Number of speeds: 3+1

Product Information Sheet - Delegated Regulation (EU) 65/2014

  • Supplier name or trademark: TEKA
  • Model identifier: NC 980
  • Annual Energy Consumption: 135,8
  • Energy Efficiency Class: D
  • Fluid Dynamic Efficiency: 12,7
  • Fluid Dynamic Efficiency class: E
  • Lighting Efficiency: 65,2
  • Lighting Efficiency class: A
  • Grease Filtering Efficiency class: C
  • Air flow (min speed normal use): 298
  • Air flow (max speed normal use): 402
  • Air flow (intensive or boost use): 637
  • Airborne acoustical A-weighted sound power emissions (min speed normal use): 52
  • Airborne acoustical A-weighted sound power emissions (max speed normal use): 60
  • Airborne acoustical A-weighted sound power emissions (instensive or boost use): 70
  • Power consumption in off mode (W): 0,00
  • Power consumption in standby mode (W): 0,56
