DVF 97670 TBS WH

90cm Vertical decorative Hood with Fresh air function

REF. 112930020

EAN. 8434778010749

Select a colour: White Glass

Vertical decorative hood
Fresh air function
Touch control panel
Extraction rim system “Contour”
3 speeds + 1 intensive

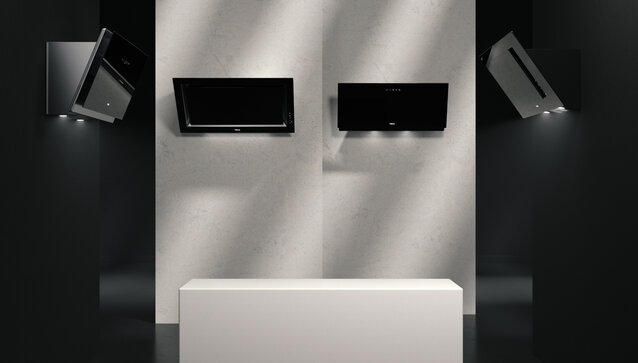

Designed to save

Savings of up to 75% * with A ++ classifications, compared to class D models. Our hoods also allow recirculation installation, favoring insulation and air conditioning in your home.

Fresh Function

Fresh Air, an ideal function for gatherings at home. Refresh your kitchen air for 24 hours, in 10-minute cycles with 50-minute breaks. Get rid of annoying odors, keeping your home always fresh.

Regenerative filters

Your home free of odors with the new latest generation optional regenerative filters. Eliminates up to 95% of odors for approximately three years.

Create harmony in your kitchen

Different shapes and sizes to find the perfect hood you are look for, with innovative designs in stainless steel or white/black glass.

Relax at home

Silent Ecopower engine features a powerful extraction capacity, with more than 800 m3, but it will keep your kitchen in silence, with just only 37dBA.

More powerful and environmentally responsible LED lighting

LED lighting bars is our best tool to provide light to a bigger area over the cooking zone, and being more efficient and environmentally friendly at the same time.

Latest generation engines

More efficient motors, which provide greater energy savings, greater durability, and less noise. More extraction with minimum consumption.

Easy to use

The electronics are completely integrated into the glass, arranged through a simple and intuitive control panel in which you can access the different functions quickly and efficiently.

Urban Colors Edition
Decorative vertical hood
Touch control
FreshAir function
Brushless EcoPower Motor
3 speeds + 1 intensive
Intensive speed exhaust capacity (m3/h): 740
Max speed exhaust capacity (m3/h): 400
Min speed exhaust capacity (m3/h): 270
Intensive speed sound level (dBA): 59
Max speed sound level (dBA): 48
Min speed sound level (dBA): 42
2 LED lamps
Light intensity regulation
2 Aluminum Filters
Anti-return valve included
Stop delay timer
Filer saturation indicator
Outlet reduction included
Optional recirculation kit with tube cover installation: SET D11CTP
Optional regenerative recirculation kit with tube cover installation:Set D12CTP
Optional Charcoal Filter: D11C
Optional Regenerative filter: D12C

General measures

Product height (mm): 912-1172
Product width (mm): 898
Product depth (mm): 409
Net weight (Kg): 12,9

View technical drawing

Particular characterisitics

Certificates: CE; CB; EMC
Ø Outlet (mm): 150
Dual Aspiration System: Yes
Type of inner light: LED
Inside light Consumption (W): 1
Plug type: EU, safety class 1
Cable Connection Length (cm): 120
Power rate (V): 220-240
Frequency (Hz): 50/60
Total hood power (W): 272
Number of motors: 1
Motor power (W): 270

EU Regulation No. 65/2014 &66/2104

Annual energy consumption AEC kWh/annum (kWh): 35.1
Energy Efficiency Class: A++
Fluid Dynamic Efficiency (FDEhood): 37,6
Fluid Dynamic Efficiency class: A
Light Efficiency (Lehood) lux/Watt: 45
Lighting Efficiency class: A
Grease Filtering Efficiency class: C
Air flow (Qmin) m3/h: 270
Air flow (Qmax): 400
Air flow (Qboost): 740
Noise (LwA) min. speed (dB): 53
Noise (LwA) max. speed (dB): 59
Noise (LwA) boost speed (dB): 70
Off mode Power (Po) W: 0,49
Energy Efficiency Index (EEI): 35.7
Time increase factor: 0.6
Air pressure at best efficiency point(Pbep) Pa: 464
Electric power input at best efficiency point (Wbep) W: 147.0
Nominal power of the lighting system (WL) W: 2,2
Average illumination of the lighting system on the cooking surface (Emiddle) Lux: 180

Accessories

Anti Return valve: Yes
Outlet reduction: Yes
Optional Charcoal Filter: D11C
Regenerative charcoal filter: D12C
Conventional recirculation kit (opt) - w/tube cover: SET D11CTP
Conventional recirculation kit (opt) - w/o tube cover: Set D12CTP

Models

Number of filters: 2
Filter description: Aluminum
Opening system: Piston
Control panel: Touch control
Stop delay timer: Yes
Filter saturation indicator: Yes
Number of speeds: 3+1
Fresh air function: Yes

Product Information Sheet - Delegated Regulation (EU) 65/2014

Supplier name or trademark: TEKA
Model identifier: DVF 97670 TBS WH
Annual Energy Consumption: 35.1
Energy Efficiency Class: A++
Fluid Dynamic Efficiency: 37,6
Fluid Dynamic Efficiency class: A
Lighting Efficiency: 45
Lighting Efficiency class: A
Grease Filtering Efficiency class: C
Air flow (min speed normal use): 270
Air flow (max speed normal use): 400
Air flow (intensive or boost use): 740
Airborne acoustical A-weighted sound power emissions (min speed normal use): 53
Airborne acoustical A-weighted sound power emissions (max speed normal use): 59
Airborne acoustical A-weighted sound power emissions (instensive or boost use): 70
Power consumption in off mode (W): 0,49
