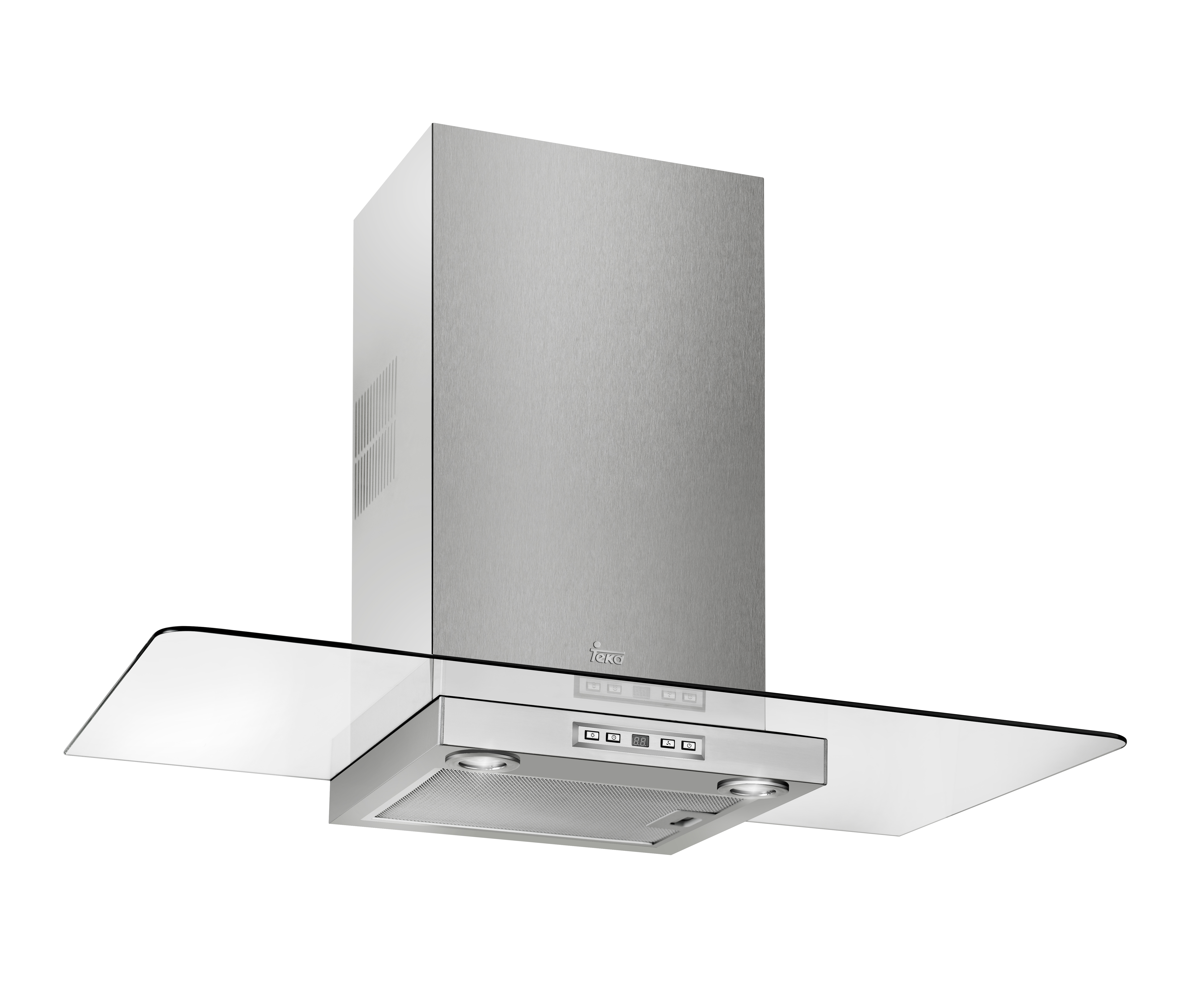

Glass wing wall-mounted extractor hood DG 685

  • Up to 807 m³/h extraction capacity
  • 3 extraction speeds + intensive
  • LED lamps
  • Ultraslim design
  • Very efficient EcoPower engine
REF. 40485380
EAN. 8421152130407
Select a colour: Stainless Steel Glass Wing
Stainless Steel Glass Wing

Create harmony in your kitchen

Different shapes and sizes to find the perfect hood, with an innovative design in stainless steel or white/black glass.
Create harmony in your kitchen

Technical details

  • Decorative glass wing hood
  • Electronic control with display
  • 3 speeds + 1 intensive
  • Free Outlet exhaust capacity (m3/h): 895
  • Intensive speed exhaust capacity (m3/h): 807
  • Max speed exhaust capacity (m3/h): 631
  • Min speed exhaust capacity (m3/h): 315
  • Intensive speed sound level (dBA): 60
  • Max speed sound level (dBA): 55
  • Min speed sound level (dBA): 42
  • 2 LED lamps
  • 1 Stainless Steel filter
  • Stop delay timer
  • Filter saturation indicator
  • Operating pilot light
  • Anti-return valve included
  • Outlet reduction included
  • Optional recirculation kit with tube cover installation: SET 1/N1
  • Optional Charcoal Filter: D4C

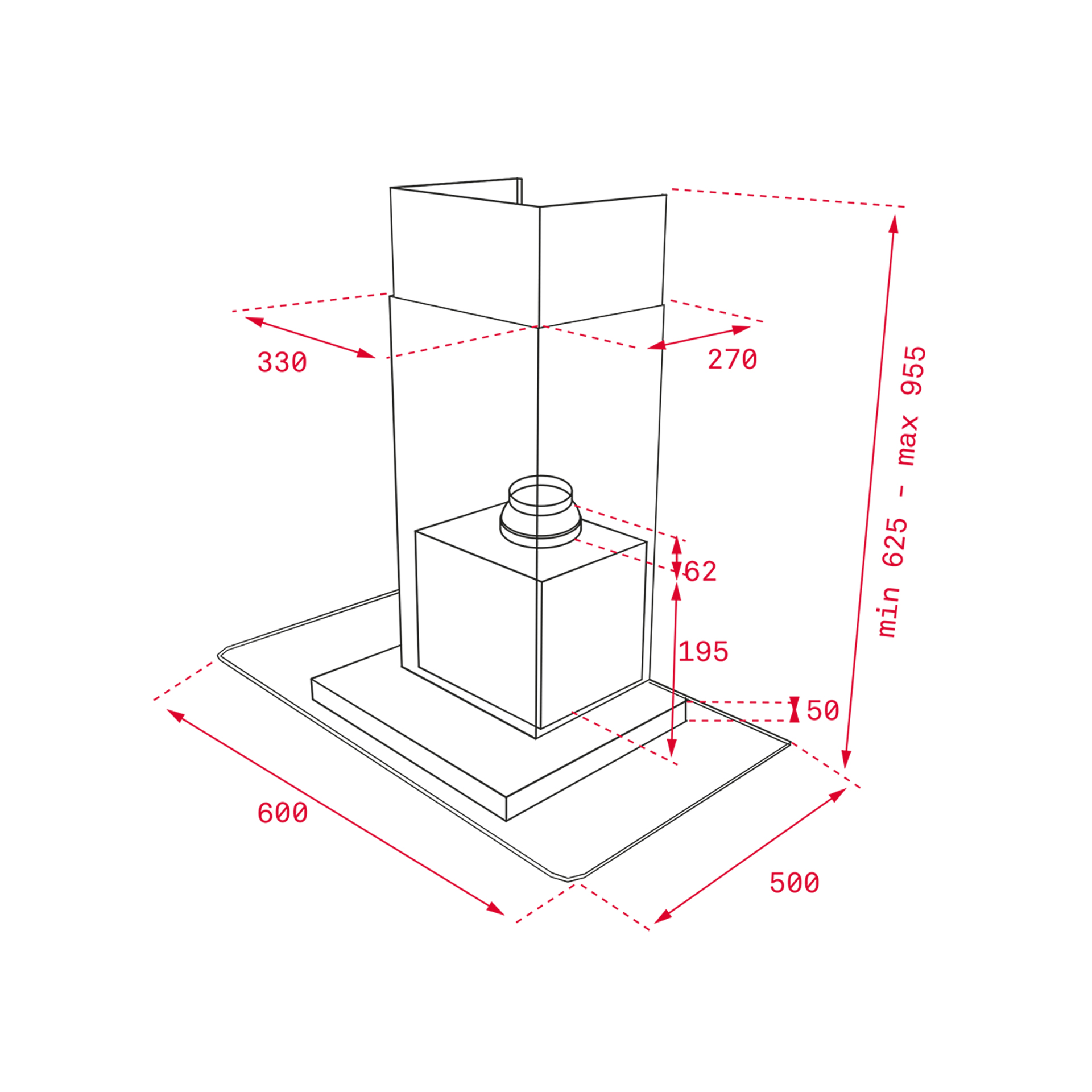

General measures
  • Product height (mm): 667 - 997
  • Product width (mm): 600
  • Product depth (mm): 500
  • Net weight (Kg): 10,9
Particular characterisitics
  • Certificates: CE; CB; Rohs
  • Ø Outlet (mm): 150
  • Type of inner light: LED
  • Inside light Consumption (W): 3
  • Plug type: European plug
  • Power rate (V): 220-240
  • Frequency (Hz): 50
  • Total hood power (W): 286
  • Number of motors: 1
  • Motor power (W): 280
  • Air flow (Qmin) m3/h: 315
  • Air flow (Qmax): 631
  • Air flow (Qboost): 807
Accessories
  • Anti Return valve: Yes
  • Outlet reduction: Yes
  • Optional Charcoal Filter: C1RTK
  • Regenerative charcoal filter: R1RTK
  • Conventional recirculation kit (opt) - w/tube cover: CFH 15200 L2C
  • Regenerative recirculation kit (opt) - w/tube cover: RFH 15200 L2C
Models
  • Number of filters: 1
  • Filter description: Stainless Steel filters
  • Control panel: Electronic soft bottons with display
  • Stop delay timer: Yes
  • Filter saturation indicator: Yes
  • Number of speeds: 3+1
