  • View 1 of hood DG 685 Stainless Steel / Glass wing by Teka

_Total

>

DG 685

Decorative glass wing wall-mounted hood with 3 speeds

  • Up to 807 m³/h extraction capacity
  • 3 extraction speeds + intensive
  • LED lamps
  • Ultraslim design
  • Very efficient EcoPower engine
REF. 40485380
EAN. 8421152130407

Technical details

  • Decorative glass wing hood
  • Electronic control with display
  • 3 speeds + 1 intensive
  • Free Outlet exhaust capacity (m3/h): 895
  • Intensive speed exhaust capacity (m3/h): 807
  • Max speed exhaust capacity (m3/h): 631
  • Min speed exhaust capacity (m3/h): 315
  • Intensive speed sound level (dBA): 60
  • Max speed sound level (dBA): 55
  • Min speed sound level (dBA): 42
  • 2 LED lamps
  • 1 Stainless Steel filter
  • Stop delay timer
  • Filter saturation indicator
  • Operating pilot light
  • Anti-return valve included
  • Outlet reduction included
  • Optional recirculation kit with tube cover installation: SET 1/N1
  • Optional Charcoal Filter: D4C

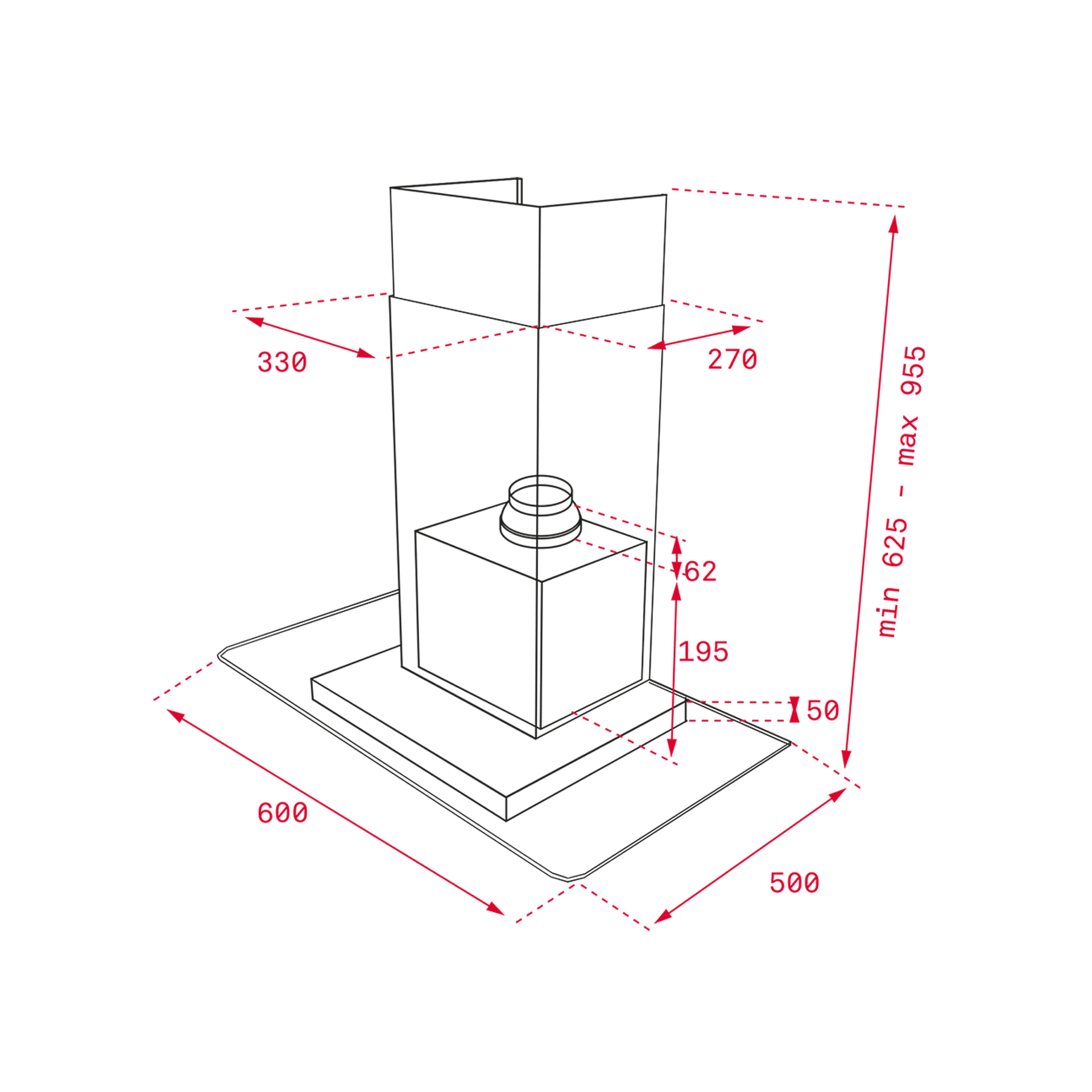

General measures
  • Product height (mm): 667 - 997
  • Product width (mm): 600
  • Product depth (mm): 500
  • Net weight (Kg): 10,9
Features
  • Certificates: CE; CB; Rohs
  • Ø Outlet (mm): 150
  • Type of inner light: LED
  • Inside light Consumption (W): 3
  • Plug type: European plug
  • Power rate (V): 220-240
  • Frequency (Hz): 50
  • Total hood power (W): 286
  • Number of motors: 1
  • Motor power (W): 280
  • Air flow (Qmin) m3/h: 315
  • Air flow (Qmax): 631
  • Air flow (Qboost): 807
Accessories
  • Anti Return valve: Yes
  • Outlet reduction: Yes
  • Optional Charcoal Filter: C1RTK
  • Regenerative charcoal filter: R1RTK
  • Conventional recirculation kit (opt) - w/tube cover: CFH 15200 L3C
  • Regenerative recirculation kit (opt) - w/tube cover: RFH 15200 L3C
Models
  • Number of filters: 1
  • Filter description: Stainless Steel filters
  • Control panel: Backlit electronic control with white display
  • Stop delay timer: Yes
  • Filter saturation indicator: Yes
  • Number of speeds: 3+1
